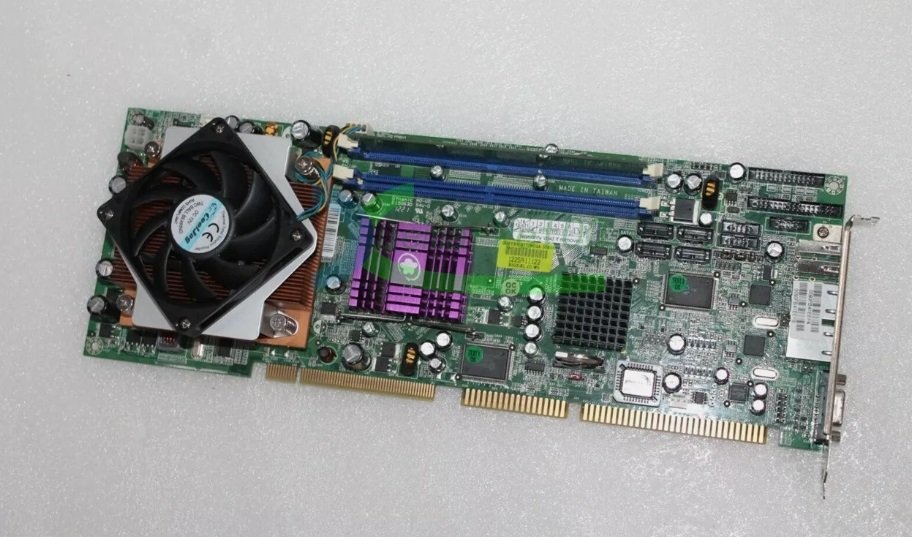

Portwell ROBO-8777VG2A Industrial Board With Processor ,Ram ,Heatsink Refurbished

Processor Intel® Core™ 2 Duo Processor, Socket 775
FSB 1066/800/533MHz
Chipset/Core Logic Intel® Q965 & ICH8
System Memory Up to 4GB DDR2 800/667/533 SDRAM on dual 240-pin DIMM Sockets
BIOS Award BIOS
Storage Devices Supports 4 x SATA 300 Drives
Solid State Disk N/A
Watchdog Timer Programmable via software from 0.5 sec. To 254.5 min.
Expansion Interface N/A
Hardware Monitoring System monitor (fan, temperature, voltage)
Power Requirement Typical: +5V@5.6A; +12V@1.3A
Dimension 338.5(L) x 122(W)mm, 13.33”(L) x 4.8”(W), 6 Layer PCB
Environment Operating Temperature: 0 to 60°C
Storage Temperature: -20°C to 80°C
Relative Humidity: 5% to 90%, non condensing
MTBF 93,788 hrs
I/O
MIO 2 x Serial (RS-232x1, selectable RS232/422/485 x 1) 1 x Parallel & 1 x FDD Channel
IrDA N/A
Ethernet Dual 10BASE-T/100BASE-TX/1000BASE-T Ethernet
PCI Express x1 interface based Gigabit Ethernet
Dual RJ-45 connectors with 2 x LED indicators
Audio HDA interface, 2-channel Audio
USB 6 x USB 2.0 ports
Keyboard & Mouse 2 x USB 2.0 ports on bracket dedicated to keyboard & mouse
Display
Graphic Controller GMCH Integrated Intel® Graphics Media Accelerator 3000 (Intel® GMA 3000)
Graphic Memory Intel® Dynamic Video Memory Technology (DVMT) 4.0 system memory sharing up to 256MB
Display Interface Support CRT interface up to QXGA 75Hz (2048 x 1536)
